$14000 Automatic Glass Loading Machine

Automatic glass loading machine double side

By digesting advanced technology abroad,combined with our R & D and innovation,the working performance of it can reach same level of best products of same type,with compact structure and high strength of machinery,and adopting bevel gear to transmit and stable travel in lifting & descending and X,Y axis,without vibration and having reliable performance.The machine adopts PLC+human interface control,with high working efficiency and low labor cost.

Application:

Suitable for CNC automatic cutting line,laminated glass line,tempered glass line,double edge grinding line,coating glass line,etc.

Technical Parameters:

Model No. ZTL3627Y ZTL6133Y ZTL3627X ZTL6133X
Work Mode Single Side,Double Size Single Side,Double Size Single Side,Double Size Single Side,Double Size
Station 1 1 1~5 1~5
Max. Glass Size(mm) 3600×2700 6100×3300 3600×2700 6100×3300
Glass Thickness(mm) 3~25 3~25 3~25 3~25
Total Power(Kw) 6~8.85 6.7~9.65 6.85~9.6 8.2~11.2

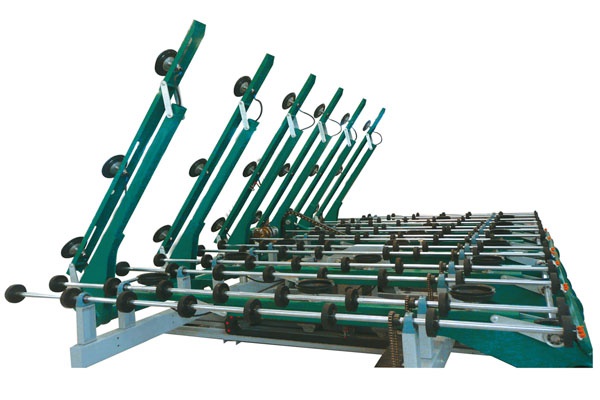

Automatic glass loading machine
